William Hackett

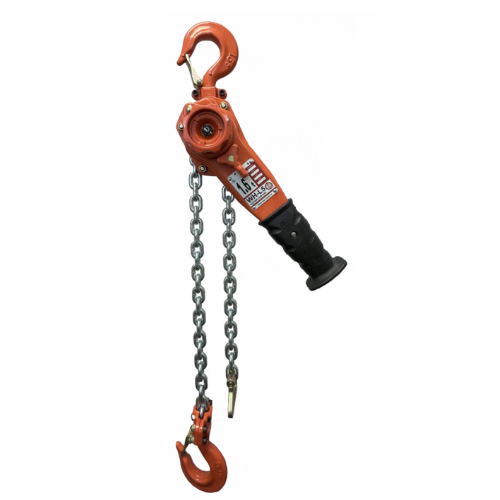

L5 QP (Quad Pawl) 800kg - 15Te Lever Hoist

L5 QP (Quad Pawl) 800kg - 15Te Lever Hoist

Regular price £249.48 GBP
Regular price Sale price £249.48 GBP
Sale Sold out

Manufactured right here in the UK, William Hackett's L5 QP Lever Hoist puts the safe in safety.

Incorporating their innovative Quad Pawl mechanical engagement functionality, this model enhances the hoist capability through the engagement of all 4 pawls with the ratchet gear in an offset configuration, allowing for finer adjustment and tensioning.

Available in Safe Working Load Limits from 800kg right up to 15Tonnes with 1.5m, 3m, 6m and 9m Heights of Lift available, you can rest assured that your L5 QP is compliant with the necessary standards and finished will full traceability markings.


■ Work Load Limits: 800kg - 15Tonnes

■ Made in the UK

■ Height of LiftL 1.5m / 3m / 6m / 9m

■ Quad Pawl design

■ Operating Temperature: -20°C to +120°C

■ EN13157:2004 + AI:2009 & BS EN818-7 Grade 7 (8) compliant

■ Proof tested to 1.25x WLL

Shipping & Returns

We aim to ship all standard hoists within 2 working days and deliver on the 3rd working day after your order. For example if you order Monday, we expect to have your hoist to you on Wednesday. However, due to the nature of the product, sometimes this changes, we will however endeavour to update you at the soonest of changes to delivery schedule.

Delivery Costs From £9.99 (Calculated by weight)
Free UK shipping over £500

View full details
  • Built with the unique Quad Pawl functionality, the L5 QP range boasts an impressive operating temperature range of -20°C to +120°C. Not only that, but each unit is proof tested to a minimum of 1.25 times the working load limit. The L5 QP is fitted with a DABS (Dual Anti-Lock Brake System) which allows the load chain to be adjusted in freewheel mode with locking the brake.

  • By design, the brake material has been fused directly onto the ratchet gear, reducing the amount of mating faces eliminating the risks of contamination which could affect brake performance and lead to premature failure.

Need The Specifications?

Download Data Sheet

Have An Enquiry? Get In Touch
