Red Rooster

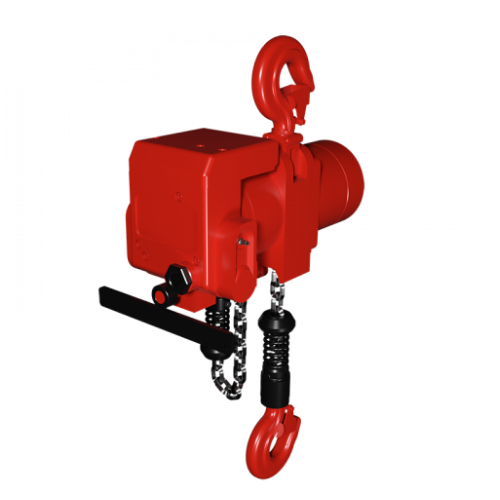

500kg Top Hook Air Hoist

500kg Top Hook Air Hoist

Regular price £2,794.00 GBP
Regular price Sale price £2,794.00 GBP
Sale Sold out

Red Rooster's impressive TCR Series of Air Hoists centres the design on being compact and ultra-lightweight. As with all of the TCR Series, the brand emphasises the use of top quality materials (metal and safety catches) ensuring optimal safety with no loads falling unwillingly from this top hook suspended hoist.

Featuring upper and lower switches, a Toku rotary vane motor, epicycle gearbox, failsafe automatic internal disc brake, 500kg lifting capacity, and robust cast steel housing, when buying Red Rooster, you can rest assured that you're receiving best in performance, safety, and longevity.

Specification

■ Lifting Capacity: 500kg

■ Chain falls: 1

■ Lifting Speed with load: 12 / 10.5m/min

■ Lifting Speed without load: 16m/min

■ Lowering speed with load: 17.9 m/min

■ Air consumption: Lifting - 25l/sec / Lowering 27l/sec

■ ATEX Zone 2 specification

■ Toku rotary vane motor

■ Robust epicycle gearbox

■ Failsafe automatic internal disc brake

■ Upper & lower mechanical switches

■ Cast steel housing

■ Internal silencing down to 83 dB(A)

■ Load chain 6.3 x 19mm of European manufacture to EN818-7

■ Automatic, adjustable load limiter

■ Weight: 3M HOL - 31.1kg (0.8kg per extra metre)

Shipping & Returns

We aim to ship all standard hoists within 2 working days and deliver on the 3rd working day after your order. For example if you order Monday, we expect to have your hoist to you on Wednesday. However, due to the nature of the product, sometimes this changes, we will however endeavour to update you at the soonest of changes to delivery schedule.

Delivery Costs From £9.99 (Calculated by weight)
Free UK shipping over £500

View full details
  • For safety purposes, Air Hoists should only be operated by a competent person. This Red Rooster product is intended to lift or support materials only and has all the required safety features including load brakes, emergency stop and shock protection, hook latch, and limit switch.

    Daily checks of your Air Hoist braking function, emergency stop, and lifting/lowering limits should be performed by a fully trained inspector to ensure that everything is working accordingly, i.e. that your chains are lubricated sufficiently.

  • To avoid underperformance and overloading, your air hoist is operated at a 4 or 6 bar system pressure. To deliver maximum performance ensure that your air supply is clean and dry. Your Red Rooster hoist complies with the European Directive and are all CE marked, so you can rest assured that it's of the highest quality and and safe to use.

    In order to prevent injury from occuring, make sure that only one person operates at any given time and that your working area is clear just in case the load falls.

Want to know the Specifications?

Download Data Sheet
